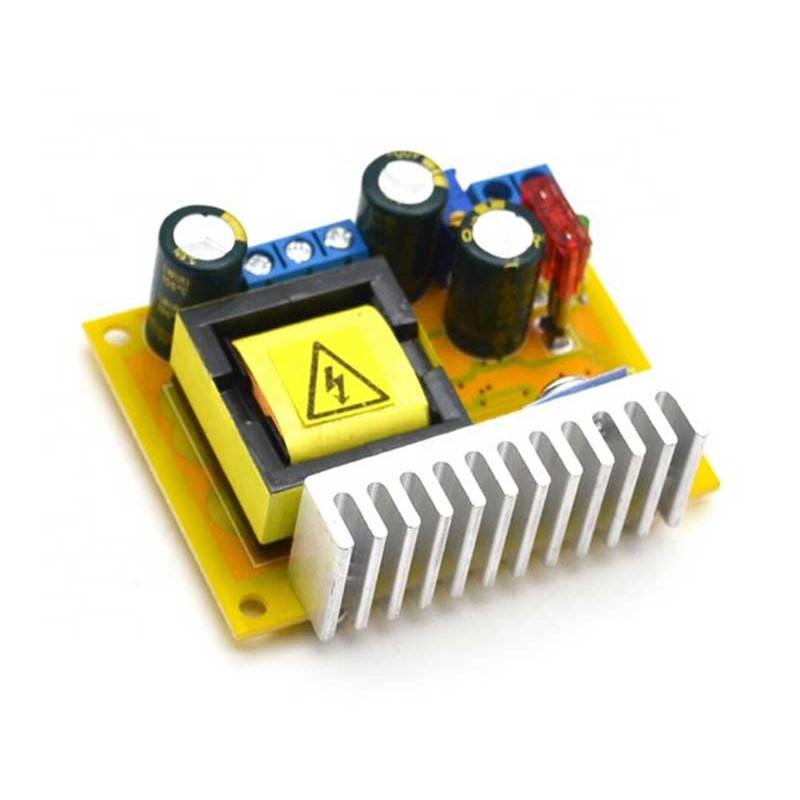

Modul step up DC-DC 8-32V la 45-390V 780V
- Cod produs: MIV-12915
- Disponibilitate: 1
17,25 Lei
- Fără TVA: 14,26 Lei
Input voltage: 10-32V input (Suitable for width voltage input range)
Input Current: 5A (MAX)
Quiescent current: 15mA
Output voltage: 45-390V 780V Dual Output continuously adjustable.
Output Current: 0.2A MAX
Output Power: 40W (peak 70W)
Working temperature: -40 ~ + 85 degrees
Operating frequency: 75KHz
Conversion efficiency: up to 88%
