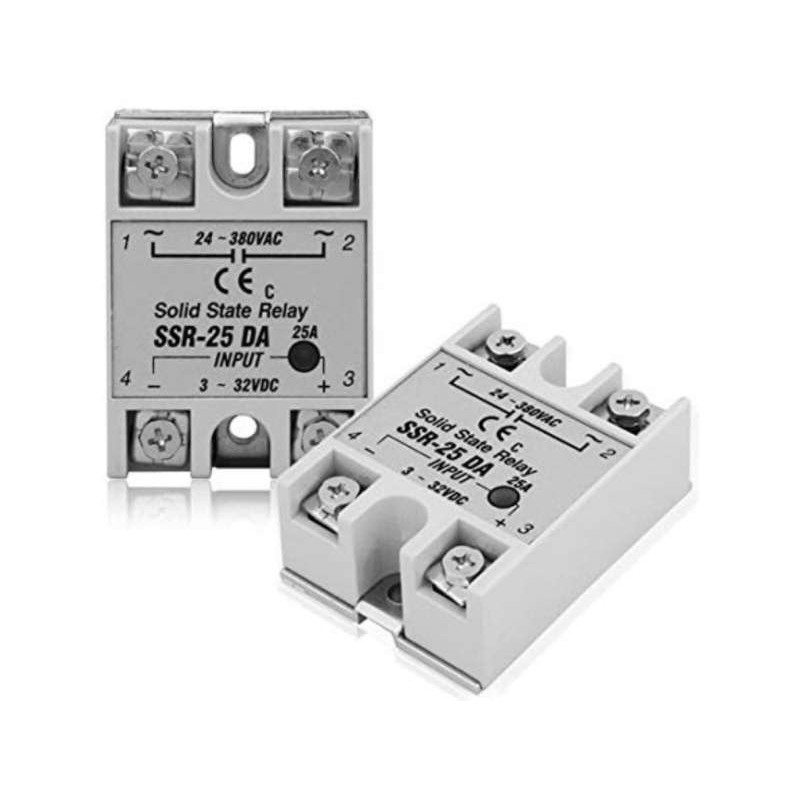

Releu solid State 25A SSR-25DA
- Cod produs: MIV-13349
- Disponibilitate: 530
19,00 Lei
- Fără TVA: 15,70 Lei
| ype | SSR-25DA |
| Control methods | DC - AC |
| Load current | 25A |
| Load voltage | 24~380VAC |
| Input control voltage | 3~32VDC |
| Control current | DC: 3~25mA |
| On voltage | ≤1.5VAC |
| Off leakage current | ≤2mA |
| On-off time | ≤10ms |
| Dielectric strength | 2500VAC |
| Insulation resistance | 500MΩ/500VDC |
| Ambient temperature | - 30°c ~ +75°c |
| Mounting methods | Bolt fixed |
| The work instructions |
LED |
