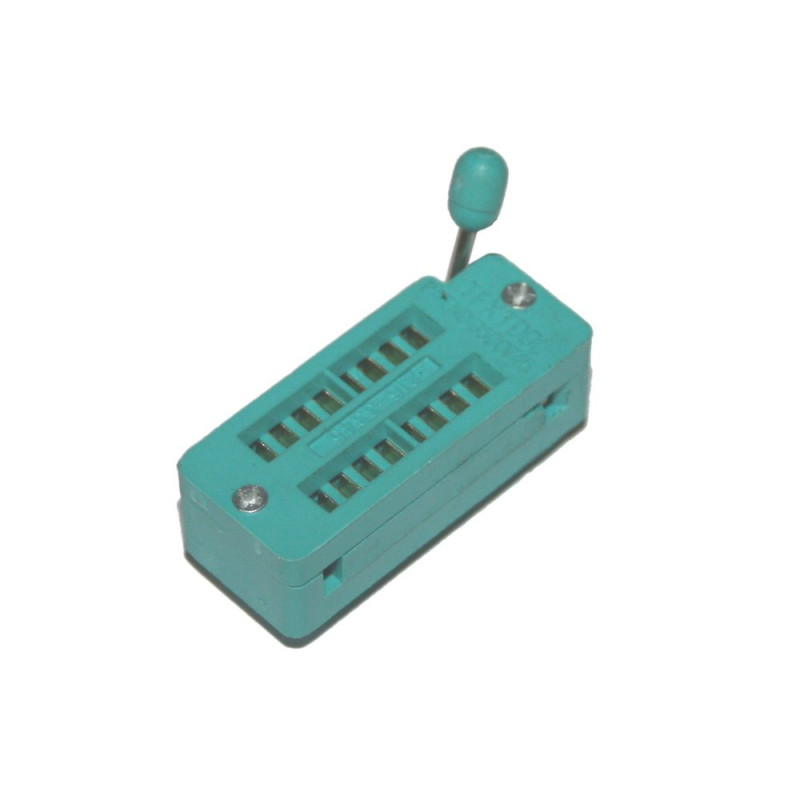

Soclu DIP ZIF 16pini
- Cod produs: MIV-7902
- Disponibilitate: 46
2,03 Lei
- Fără TVA: 1,68 Lei
DOUBLE DIP SOCKET 2.54mm(0.100’’)
Material:Housing:30% Glass filled PBT UL94V-0
Contacts:Phosphor Brone
Plating(Gold plated):3u’’ over 50u’’ nickel
(Tin plated):100u’’ over 50u’’ nickel
Electrical Characteristics:Current Rating:1 AMP
Insulator Resistance:5000MΩ min, at DC 500V
Contact Resistance:20mΩ max, at DC 100mA
Operating Temperature:-55°C~+105°C
Features:For DIPs with.100’’ lead spacing.
Lever actuated zero inserrtion force mechanism.
Socket easily disaaaembles for repairability.
Socket contact point of.110’’ bellow top surface of socket.
