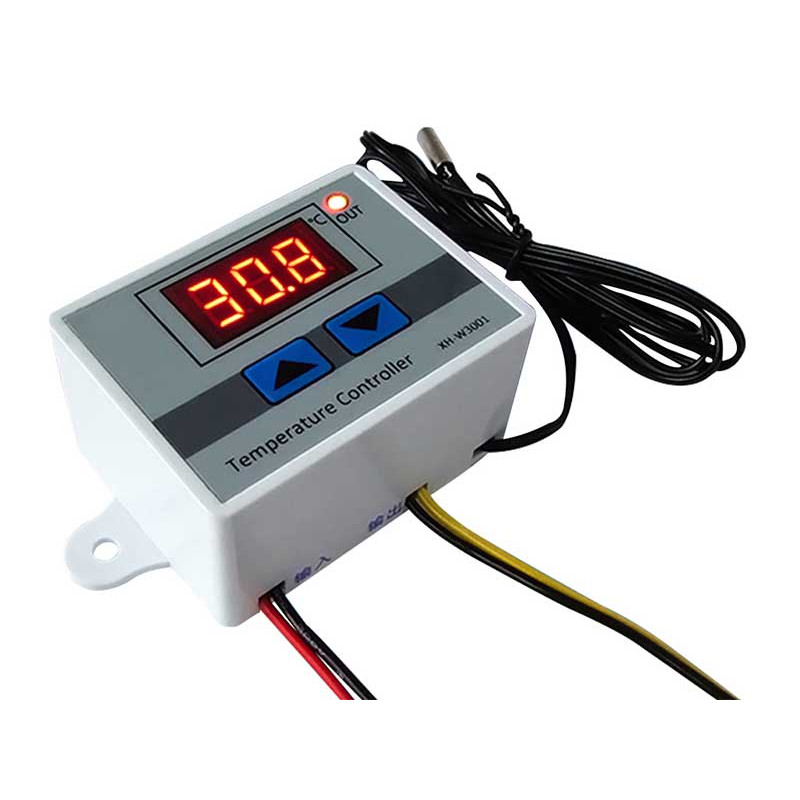

Termostat digital W3001 220V

Model:XH-W3001

Name:Temperature Controller

1.Temperature measurement, display; refrigeration, heating control

2.Temperature setting upper and lower limits

3.Simple operation

4.Easy to install

Temperature range: -50 ~ 110C

Temperature accuracy: ± 0.1C

Measuring accuracy: ± 0.2C

Input measurement: NTC 10 K L = 1 M waterproof probe

Power input:  220V

Output Power: 120W/ 240W/ 1500W

Output Type: Direct Output

Output capacity: up to 10A

Installation height: 73mm (4mm opening)

Size: 61 * 45 * 31mm

 How to use:

1. Press the up button show the starting temperature

long press UP button the temperature display Flashing , press the UP or Down button Set the start temperature value

2. Press the Down button show the Stop temperature

long press Down button the temperature display Flashing , press the UP or Down button Set the stop temperature value
