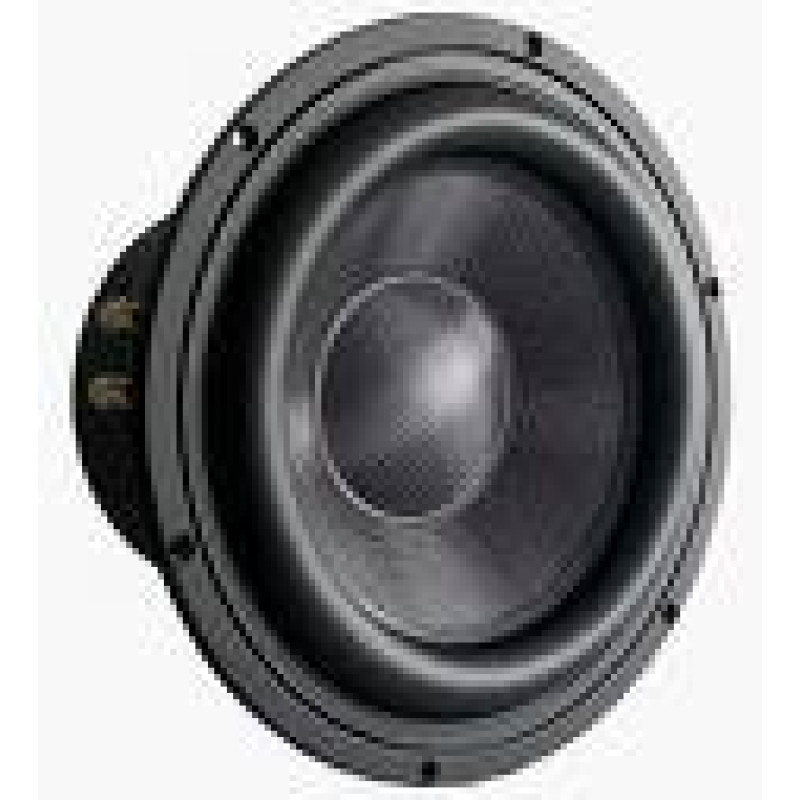

Woofer 25cm Visaton VS-TIW250XS

Rated power 200 W
Maximum power 300 W
Nominal impedance Z 8 Ohm
Frequency response fu–3000 Hz
(fu: Lower cut-off frequency depending on cabinet)
. Mean sound pressure level 89 dB (1 W/1 m)
Excursion limit +/−14 mm
Resonance frequency fs 33 Hz
Magnetic induction 1,3 T
Magnetic flux 1600 µWb
Height of front pole-plate 8 mm
Voice coil diameter 50 mm
Height of winding 25 mm
Cutout diameter 235 mm
Net weight 5,3 kg
D.C. resistance Rdc 5,6 Ohm
Mechanical Q factor Qms 5,21
Electrical Q factor Qes 0,35
Total Q factor Qts 0,33
Equivalent volume Vas 66 l
Effective piston area Sd 314 cm²
Dynamically moved mass Mms 49 g
Force factor Bxl 13 Tm
Inductance of the voice coil L 1,7 mH
Mai multe detalii pe site-ul visaton: Detalii
